US Patent: 727,136
|
| Elevator Hoisting Mechanism
|
|
Patentee:
|
|
| Thaddeus W. Heermans (exact or similar names) - Chicago, Cook County, IL |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Dec. 04, 1899 |
| Granted: |
May 05, 1903 |
|

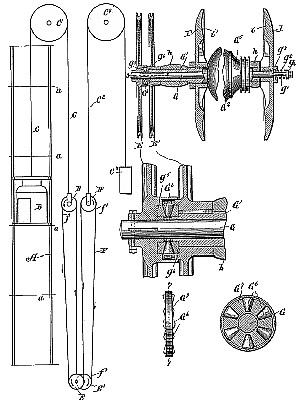

Patent Pictures:
[
1 | 2 | 3 | 4 | 5 | 6 | 7
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
This invention relates to improvements in frictional hoisting mechanism for elevator-cars, and embraces both an improved variable-speed motor for giving power to operate an elevator-car and an arrangement of the rope connections between said motor and the car for giving variable speed to the car.
Claim:
An elevator apparatus comprising a car and a counterweight, traveling sheaves connected with said car and counterweight, an endless cable trained about said sheaves, two driven wheels around which the endless enable also passes, a single motor arranged to drive both wheels and means for varying the relative speeds of the wheels. |
|
