US Patent: 303,053
|
Combined Drill and Countersink
|
Patentee:
|
|
Charles P. Russell (exact or similar names) - Greenfield, MA |
|
Patent Dates:
|
Applied: |
Jan. 02, 1884 |
Granted: |
Aug. 05, 1884 |
Patent Pictures:
|
|

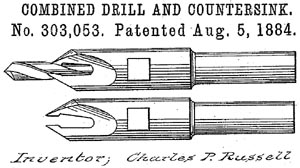

Charles P. Russell patent August 5, 1884 |
USPTO (New site tip) Google Patents
Report data errors or omissions to steward
Stan Schulz "Vintage Machinery" entry for Wiley & Russel Manufacturing Co.
|
Description: |
The lips at the tip of the tapered cutters for the countersink fit within the flutes of the drill, thereby supporting the tapered cutters. The center is hollow, similar to the countersink drill combinations patented by A. J. Smart, and assigned to Wiley and Russell (pat. Nos. 298,248 and 299,429). |
|
