US Patent: 783,763

Screw Driver
Screw Driver Ferrule

Patentee:

James Swan (exact or similar names) - Seymour, CT

USPTO Classifications:

16/108, 16/109, 279/102

Tool Categories:

screwdrivers : screwdriver handles

Assignees:

None

Manufacturer:

James Swan Co. - Seymour, CT

Witnesses:

S. W. Atherton

Zalmon Goodsell

Patent Dates:
Applied:	Nov. 21, 1904
Granted:	Feb. 28, 1905

Patent Pictures:

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Steve Gosselin

Description:

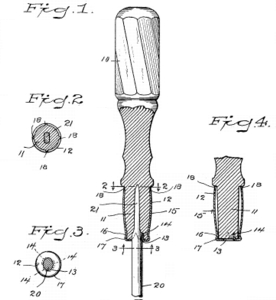

Similar to patent 589043, this ferrule is formed to a barrel shape, and with prongs to grab the end grain of the handle. It is installed first, then the shank of the screwdriver driven in, the resultant displacement of the wood filling the inside of the barrel shape. Ferrules of this type, or of the similar patent, were being offered in the James Swan Company's 1920 catalogue.
