US Patent: 470,567

Sample Case

Patentee:

John E. Hitch (exact or similar names) - Wilmington, OH

USPTO Classifications:

190/16, 206/379, 211/69, 211/70.6, 217/11, 217/5, 383/19

Tool Categories:

industrial tools : tool storage

woodworking tools : hand drills : drill accessories

tool making : making handsaws

Assignees:

None

Manufacturer:

Unknown

Witnesses:

C. M. Jenkins

C. H. Irwin

Patent Dates:
Applied:	May 14, 1891
Granted:	Mar. 08, 1892

Patent Pictures:

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Russ Allen.

Description:

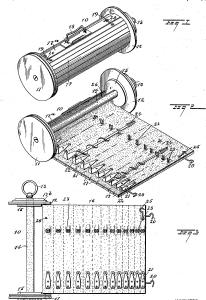

Roll top style case. Drawing shows the case with auger bits and known examples have this configuration with both Hitch's name and Irwin along with Irwin auger bits. It is not know if this was a retail configuration or a "sample case" for salesmen. Note the second witness - C. H. Irwin.
