US Patent: 221,763 - Improvement in Grooving Irons


	Home\| FAQ	Search:Advanced\|Person\|Company\| Type\|Class	Login


Quick search:	Patent number:	Patent Date:

US Patent: 221,763

Improvement in Grooving Irons

Patentee:

John W. Ammons (exact or similar names) - Columbia, MO

USPTO Classifications:

30/167.1

Tool Categories:

woodworking tools : planes : plane blades

woodworking tools : planes : plow planes

woodworking tools : planes : match planes

Assignees:

John W. Ammons - Columbia, MO

John P. Horner - Columbia, MO

Manufacturer:

Not known to have been produced

Witnesses:

F. D. Evans

I. O. Hockaday

Patent Dates:
Applied:	Sep. 15, 1879
Granted:	Nov. 18, 1879

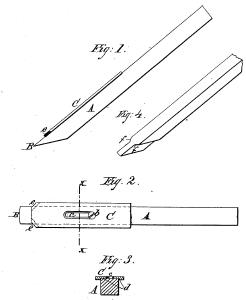

Patent Pictures:

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Russ Allen.

Description:

Cutter cuts both the groove as well as chamfers the edge of the groove. This is to prevent the problems associated with fitting tongue and groove joints of either the edges breaking off and fouling the joint fit or the added step of manually chamfering the corners with a rabbet plane.
