US Patent: 315,722

Shingle and Siding Gage

Patentee:

William Harvy Harrison Campbell (exact or similar names) - Wichita, KS

USPTO Classifications:

33/647

Tool Categories:

layout tools : scribes : clapboard markers

Assignees:

None

Manufacturer:

Not known to have been produced

Witnesses:

Patent Dates:
Applied:	Feb. 24, 1885
Granted:	Apr. 14, 1885

Patent Pictures:

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Ralph Brendler

Description:

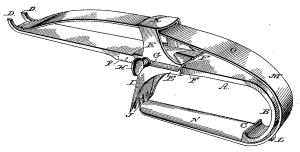

This is a very nice design for a clapboard/shingle holder, which uses a curved body of spring steel to act as both a tongue to fit under the previous clapboard. Once the tongue is in place, compressing the spring will drive a sharp point into the clapboard to secure the tool.

Note that the last page of the patent contains a correction. The patent papers give one of the middle names as "Harry", when it is in fact "Harvy".
