US Patent: 2,209,250
|
| Scribing Trammel for Striaght and Curved Lines
|
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
May 06, 1939 |
| Granted: |
Jul. 23, 1940 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Ralph Brendler
|
|
Description: |
|

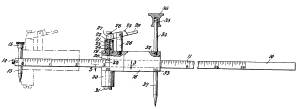

This is an intersting combination marking gage and trammel with a
reversible head to allow it to mark off straight or curved edges.
Of particular merit on this piece is the presence of gaging holes
on the back of the arm, with a corresponding index pin in the head.
This would allow the gage to be quickly and accurately locked in
position at standard distances.
|
|
