US Patent: 1,577,569

Gauge and Scribing Tool

Patentee:

Alfred J. Donley (exact or similar names) - Bridgeport, CT

USPTO Classifications:

33/41.1

Tool Categories:

layout tools : marking gauges : curve marking gauges

layout tools : scribes

Assignees:

None

Manufacturer:

Not known to have been produced

Witnesses:

Unknown

Patent Dates:
Applied:	May 12, 1924
Granted:	Mar. 23, 1926

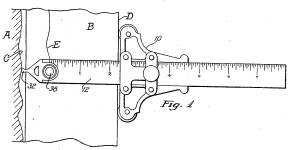

Patent Pictures:

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Ralph Brendler

Description:

This is a very nice combination marking gage and transfer scribe. The gage feature can handle straight or curved surfaces, and has wheels to reduce sliding friction.
