US Patent: 390,789

Combination-Gage

Patentee:

William Bruce Little (exact or similar names) - New York, NY

USPTO Classifications:

33/44, 33/670

Tool Categories:

layout tools : marking gauges

Assignees:

None

Manufacturer:

Not known to have been produced

Witnesses:

C. Sedgwick

Edward Clark

Chas. Nida

Patent Dates:
Applied:	May 18, 1888
Granted:	Oct. 09, 1888

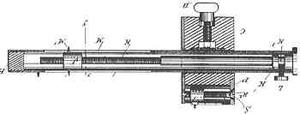

Patent Pictures:

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Ralph Brendler

Description:

This is a combination gage vaguly reminiscent of the classic Williams' patent (17403), but with a couple of extra features. Like the Williams patent, this gage has 2 marking points, a cutting point and an adjustable mortise pair, but it also has a point in the bottom of the head which could be used to mark off of a rabbeted edge. It also adds a lock screw to prevent unintentionally changing the adjustment.
