US Patent: 14,350
|
| Harvester-Rakes
|
|
Patentee:
|
|
| Owen Dorsey (exact or similar names) - Howard County, MD |
|
|
Patent Dates:
|
| Granted: |
Mar. 04, 1856 |
|
Patent Pictures:
[
1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for Phoenix Foundry & Manufacturing Co.
|
|
Description: |
| Abstract:

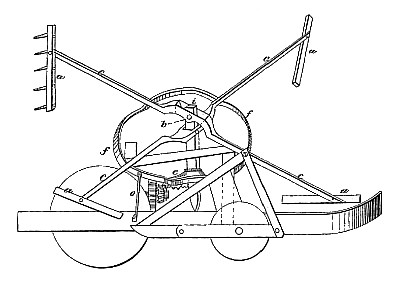

The improvement consists of a revolving rake formed with four arms, c ec ac, each pair of arms formed of metal or wood with an opening at their half-length Of a longitudinalform, so as to allow them to pass over the end of a vertical turning shaft. a a are rake-heads attached to the arms a c at a suitable angle. i is the vertical shaft, having its upper end squared, so as to receive the arms over it. A bolt, b, passes through the sides of the arms at the mortise or opening, and also through the shaft i, and upon this bolt the arms have a partial vibratory movement allowed them.
Claim:
The combination, with the rake-arms c c, to which the rakes are firmly attached, of the vertical revolving shaft i and cam way or guide f f m in, from which the rake-arms receive an undulating motion in a vertical plane, revolving about said shaft i. |
|
