US Patent: 339,280
|
| Single Acting Compound Engine
|
|
Patentee:
|
|
| John H. Eickershoff (exact or similar names) - Cincinnati, Hamilton County, OH |
|
|
Patent Dates:
|
| Applied: |
Sep. 07, 1885 |
| Granted: |
Apr. 06, 1886 |
|

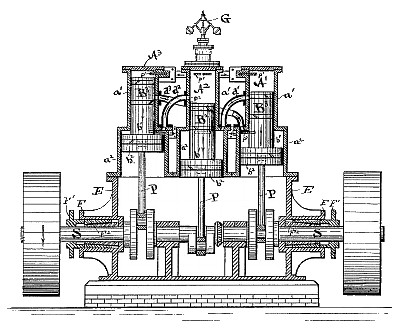

Patent Pictures:
[
1 | 2 | 3 | 4
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for Triumph Compound Engine Co.
|
|
Description: |
| Patented in Canada, patent #CA-23845.
Abstract:
My invention relates to single-acting steam engines, its object being to introduce and continue therewith the principle and advantages of compounding the steam; to which end my invention may be said to consist in a single-acting compound engine constructed as hereinafter more fully set forth, and in certain de- r5 tails of construction involved therein, but susceptible of independent application and usefulness.
Claim:
In a single-acting steam-engine, two or more cylinders, each having two diameters, with corresponding double pistons, and provided with ports p', p', and p3, the intermediate port, p'2, of each cylinder being interconnected directly and without the intervention of a receiver or valves with the adjacent cylinder, substantially as and for the purpose set forth. In a single-acting compound engine, two or more continuous cylinders, each of two diameters, with suitable port-connections for admitting live steam into the smaller or high-pressure end, and for exhausting the spent steam ultimately from the larger or expansion end, in combination with a piston in the larger end extended as a close-fitting plunger acting as a piston into the smaller end, and an intermediate governed by said piston as a valve for permitting the expansion of the liv e steam after a partial stroke of the piston into an adjoining cylinder. |
|
