US Patent: 4,089,077
|
| Combination Tool
|
|
Patentee:
|
|
| Arthur P. Morton (exact or similar names) - Vienna, VA |
|
|
Patent Dates:
|
| Applied: |
Oct. 13, 1976 |
| Granted: |
May 16, 1978 |
|
Patent Pictures:
|
|

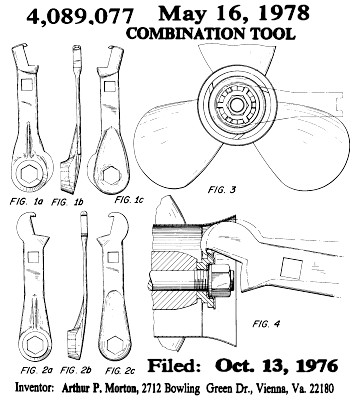

Patent 4,089,077 - edited image |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |
| Abstract: "The present invention relates to a combination tool comprising a wrench-end portion and a jaw-end portion, said wrench-end portion and said jaw-end portion being connected by a neck, said wrench-end portion containing an aperture which is adapted for engagement with a nut and said jaw-end portion containing a tooth member and a lower lip member which cooperate to facilitate the removal of a propeller from a propeller shaft." The description notes this was designed to work with MERCURY boat propellers. A known example is marked in part - "PROP-MATE PAT NO. 4,089,077 MODEL NO. 116 // STAINLESS STEEL BY T&R MACHINE."
Fig. 3 & 4 of the drawings are details of the tool's relationship to features of the propeller's connection to the drive shaft. |
|
