US Patent: 46,835
|
| Cane Crushing Machine
|
|
Patentee:
|
|
| Don Carlos Turner (exact or similar names) - Madison, Dane County, WI |
|
|
Patent Dates:
|
| Granted: |
Mar. 14, 1865 |
|
Patent Pictures:
[
1 | 2 | 3
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:

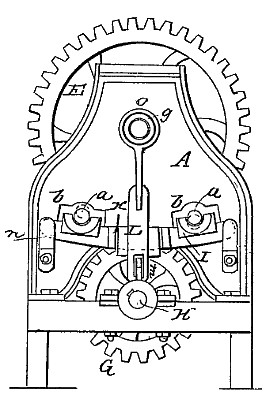

The object of my improvement is to express the juice from cane and similar stalks; and the invention consists, essentially, in yokes suspended by stirrups from the axis of the upper roller and supporting the journals of the lower rollers in such a manner that when one lower roller expands or opens to admit the cane, the other contracts or shuts in such a manner as to produce the greatest pressure, and vice versa; also, in the method of tightening or adjusting the rollers, and in the arrangement of the boxes that support the lower rollers relatively to the bearings of the yoke.
Claim:
The stirrup L, suspended from the fixed bearing of the upper roller, and sustaining the lower rollers in place in the act of pressing, and allowing them a free motion, and so arranged as to bind the rollers together, so as to confine the strain principally to the middle of the frame |
|
