CA Patent: CA-60,739
|
Engine Cut-Off
Detente de Machines a Vapeur
|
|
Patentee:
|
|
| John Abell (exact or similar names) - Toronto, York County, ON, Canada |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
May 09, 1898 |
| Granted: |
Jul. 26, 1898 |
|

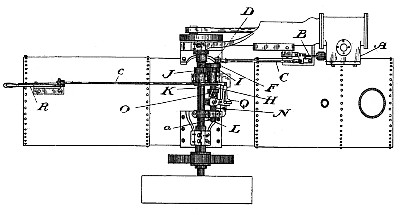

Patent Pictures:
[
1 | 2 | 3
]
|
|
|
CIPO Data
Espacenet patent
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for John Abell Engine & Machine Works
|
|
Description: |
| Abstract:
The object of my invention is to devise a reverse and variable cut-off, which will permit of the the widest possible range and accuracy of cut-off, which will reverse quickly and which is simple in construction and reliable in operation and consists, essentially, in operating the valve connecting rod from the crank disk pin on a slide adjustable on a suitably driven crank disk and provided with means whereby its position on the disk may be changed at will, while the parts are in motion.
Claim:
In mechanism for the purpose described, a slide having a wrist pin on which is thereon on which is journaled the valve connecting rod in combination with a disk having guides thereon in which the said slide may move: a suitably journaled sleeve on which the said disk id fast; means for revolving the said sleeve from some moving part; a shaft within the sleeve; a connection between the shaft and the slide whereby the latter may be moved by the turning of the shaft. |
|
