US Patent: 1,433,814
|
| Safety Device For Tools
|
|
Patentee:
|
|
| Frank William Grady (exact or similar names) - Niles, CA |
|
|
Patent Dates:
|
| Applied: |
Nov. 29, 1920 |
| Granted: |
Oct. 31, 1922 |
|
Patent Pictures:
[
1 | 2 | 3 | 4
]
|
|

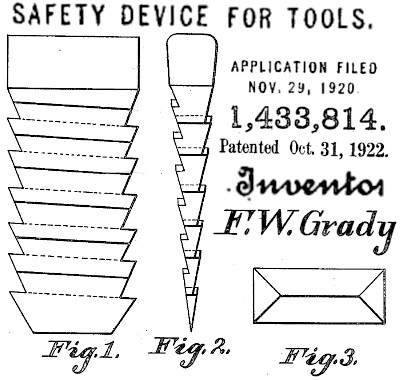

Patent 1,433,814 - edited drawing |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
GRADY WEDGE (composite image -- FLICKR )
|
|
Description: |
| Metal wedge with "reverse" facing "fishhook" spurs which act to hold position against loosening. A 1928 write-up mentions improvements in design and manufacturing process. Produced in several sizes to fit a range of wooden tool handles - hammers, axes, etc. & advertised as the "GRADY WEDGE." |
|
