US Patent: 381,788
|
| Planer Attachment for Cutting Internal Gears
|
|
Patentee:
|
|
| George F. Huthins (exact or similar names) - Worcester, Worcester County, MA |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Feb. 13, 1888 |
| Granted: |
Apr. 24, 1888 |
|
Patent Pictures:
[

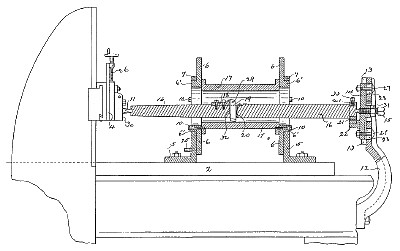

1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
My invention relates to machines for cutting internal gears, and more particularly for gears of comparatively small diameter and long face and the object of my invention is to provide a mechanism for cutting internal gears, which can be readily applied to any ordinary iron planer and be simple in construction and mode of operation.
Claim:
The combination, with a reciprocating table, a supporting-bed, and stands for carrying the work, of a cutter-bar supported at one end from the bed on a bearing adjustable in the direction of the length of the cutter-bar, and at the other end on a bearing carried by a toolhead movable in a direction at right angles to the length of the cutter-bar, and a cutting-tool carried by the bar. |
|
