US Patent: 1,617,109
|
| Socket-Wrench Container
|
|
Patentee:
|
|
| David F. Graham (exact or similar names) - Coudersport, PA |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Mar. 25, 1925 |
| Granted: |
Feb. 08, 1927 |
|
Patent Pictures:
|
|

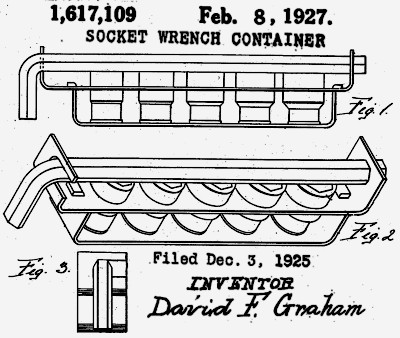

patent 1,617,109 - edited image |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |
| Two metal strips; the upper one with holes to hold sockets, a slot and hole forming a holder for the "handle," and slots for "tabs" from the lower strip. The lower strip forms a "bottom" to hold the sockets; the handle provides the "upper" portion of the holder.
The sockets shown in the drawing resemble those in Graham's earlier design patent D59,417 which were produced by the Graham Roller Bearing Co., Coudersport, PA. |
|
