US Patent: 55,379
|
| Sugar Cane Mill
|
|
Patentee:
|
|
| E. W. Skinner (exact or similar names) - Madison, Dane County, WI |
|
|
Patent Dates:
|
| Granted: |
Jun. 05, 1866 |
| Antedated: |
Dec. 05, 1865 |
|

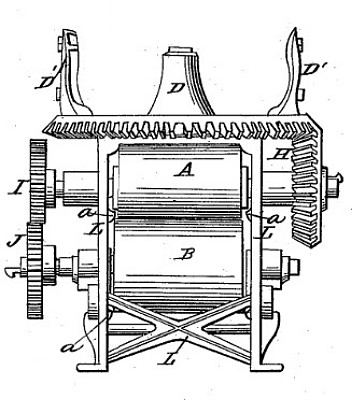

Patent Pictures:
[
1 | 2 | 3
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
My invention consists in arranging~ between the front and rear lower rollers a suitable bar or plate supported in the frame of the machine so as to prevent the cane from dropping down between said rollers, said plate having appropriate shoulders or projections at each end to guide said cane inward away from the ends of the rollers, and thus prevent its passing between the frame and ends of the rollers; and, secondly, my invention consists in arranging cups directly beneath each of the bearings of the rollers to catch the oil used in lubricating said bearings, and prevent its intermingling with and injuring the juice.
Claim:
Arranging a guide or shed, N, provided with shoulders, between the lower rollers, to prevent the cane from running off the ends of the rear roller, as and for the purposes set forth. Arranging beneath tie journal-bearings of the rollers the cups ac, provided with outlets a'. |
|
