US Patent: 706,570
|
| Lubricator
|
|
Patentee:
|
|
| Oliver G. Kipp (exact or similar names) - Rochelle, Ogle County, IL |
|
|
Patent Dates:
|
| Applied: |
Apr. 15, 1901 |
| Granted: |
Aug. 12, 1902 |
|

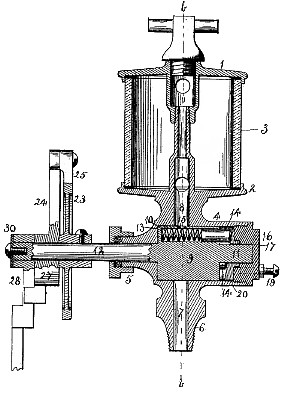

Patent Pictures:
[
1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for Madison-Kipp Corp.
|
|
Description: |
| Abstract:
he object of this invention is to construct a lubricator for explosive-engines in which a io positive feed is secured and which is operated by the engine.
Claim:
he combination of an oil-reservoir, an outlet-passage leading from the reservoir, a cylindrical opening having a communication with the outlet-passage, a discharge-opening leading from the cylindrical opening, a cap for the cylindrical opening, a head located within the cylindrical opening having a shaft extension, means for imparting an intermittent rotary movement to the shaft, the head having a series of lengthwise chambers each having an opening through the periphery of the head, each chamber having a plunger, a spring for each plunger moving it in one direction and a cam moving the plungers in the opposite direction. |
|
