US Patent: 675,501
|
| Valve Gear for Explosive Engines
|
|
Patentee:
|
|
| William G. Stolz (exact or similar names) - Brooklyn, Kings County, NY |
|
|
Patent Dates:
|
| Applied: |
Feb. 05, 1901 |
| Granted: |
Jun. 04, 1901 |
|

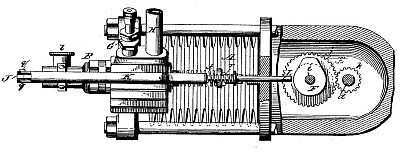

Patent Pictures:
[
1 | 2 | 3
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for Conger Mfg. Co.
|
|
Description: |
| Abstract:
The present invention has relation to that class of valve-gear for explosive-engines in which the inlet-valve and the outlet-valve are arranged in line with each other. The object thereof is to provide means whereby the inlet-valve may be forced from its seat and opened to supply gas to the engine-cylinder should the valve from any cause fail to act, attained by the mechanism.
Claim:
In an explosive-engine, a suction inlet-valve and a supplemental device for operating said valve should it fail to operate by suction, said device comprising a spring-actuated plunger-rod arranged to strike the valve-rod, a pivoted lever arranged to strike the plunger-rod, and suitable means for operating the lever. |
|
