US Patent: 280,113
|
| Floor-clamp
|
|
Patentee:
|
|
| Frederick E. Allen (exact or similar names) - North Grafton, MA |
|
|
Patent Dates:
|
| Applied: |
Apr. 28, 1883 |
| Granted: |
Jun. 26, 1883 |
|

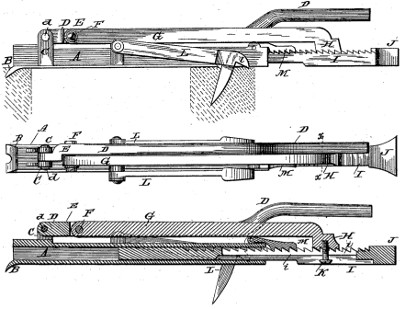

Patent Pictures:
[
1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Jeff Joslin
Vintage Machinery entry for Witherby, Rugg & Richardson
|
|
Description: |
| An illustrated advertisement in the March 1887 Carpentry and Building features "F. E. Allen's Patent Floor Clamp, for Carpenters' and Builders' use, Manufactured exclusively by Witherby, Rugg & Richardson, 26 Salisbury St., Worcester, Mass, U. S. A." The patent date is given under the illustration, which shows some refinements to the design in the patent. For example, the lever D in the Witherby, Rugg & Richardson version has a elongated central slot through which bar G passes, and this change would prevent the mechanism from twisting sideways as the lever is forced down. |
|
