GB Patent: 191,311,269 - Improvements in and relating to Steam Injectors.


	Home\| FAQ	Search:Advanced\|Person\|Company\| Type\|Class	Login


Quick search:	Patent number:	Patent Date:

GB Patent: GB-191,311,269

Improvements in and relating to Steam Injectors.

Patentees:

Harry Edward Gresham (exact or similar names) - Salford, Lancashire County, England

Frank James Gresham (exact or similar names) - Salford, Lancashire County, England

USPTO Classifications:

Tool Categories:

propulsion and energy : steam apparatus : water injectors

propulsion and energy : steam apparatus : stationary boilers : feedwater apparatus

Assignees:

None

Manufacturer:

Not known to have been produced

Witnesses:

none listed

Patent Dates:
Applied:	May 14, 1913
Granted:	Mar. 12, 1914

Patent Pictures:

Espacenet patent
Report data errors or omissions to steward Joel Havens

Description:

Abstract:

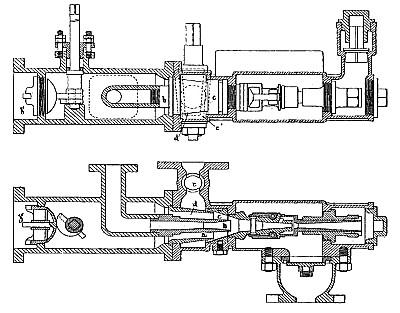

Giffard injectors; regulating.-In a live-steam injector, an annular passage a between the usual live-steam nozzle b and the water-inlet cone c admits exhaust steam to be absorbed by the feed-water before it is impinged upon by the live steam. The supply of exhaust is regulated by a spring-pressed valve f on the exhaust passage g which is acted upon by the steam in the engine valve chest through the intermediary of the passage h, piston i, and stem j. A positively-operated valve m enclosing the valve f may also be used for regulation. The device for regulating the supply of exhaust forms the subject of Application 29,328/13. When no exhaust steam is available, the discharge from the small continuously-working ejector of a brake system may be admitted, or a throttled supply of live steam.
