US Patent: 501,223
|
| Steam Engine
|
|
Patentee:
|
|
| John H. Eickershoff (exact or similar names) - Cincinnati, Hamilton County, OH |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Oct. 08, 1892 |
| Granted: |
Jul. 11, 1893 |
|

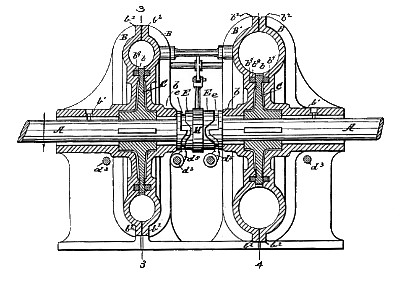

Patent Pictures:
[
1 | 2 | 3 | 4 | 5
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
The object of my invention is to provide an engine by which a larger proportion of the to steam pressure may be rendered effective; which is always balanced whatever the load may be; and in which a high rate of piston speed relatively to the speed of the shaft may be obtained.
Claim:
In a steam engine a continuous cylinder having a slot in its periphery; a plate mounted upon the shaft taking into the slot and carrying a pair of pistons; a pair of resistance slides taking diagonally across the section of the cylinder, and balanced piston valves controlling the distribution of. steam substantially as set forth. In a steam engine a continuous cylinder having a slot in its periphery; a plate mounted upon the shaft, taking into the slot and carrying a pair of pistons, a pair of self-seating resistance slides and link connection between the parts of the slides and the operating mechanism, and balanced piston valves controlling the admission and exhaust of steam. |
|
