US Patent: 1,007,038

Combined Gage, Rule, and Square

Patentee:

Edward Maupin (exact or similar names) - Rockport, MO

USPTO Classifications:

33/419, 33/44

Tool Categories:

rules

layout tools : squares : bevel squares

layout tools : marking gauges

Assignees:

None

Manufacturer:

Not known to have been produced

Witnesses:

Patent Dates:
Applied:	May 27, 1911
Granted:	Oct. 24, 1911

Patent Pictures:

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Ralph Brendler

Description:

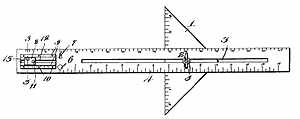

This is simple metal marking gage with a built in square. The square also uses a triangular head to allow it to act as a miter square or standard try square.
