US Patent: 655,018
|
| Steam Boiler
|
|
Patentee:
|
|
| Reinhard Scheidler (exact or similar names) - Newark, Licking County, OH |
|
|
Patent Dates:
|
| Applied: |
Feb. 28, 1898 |
| Granted: |
Jul. 31, 1900 |
|
Patent Pictures:
[

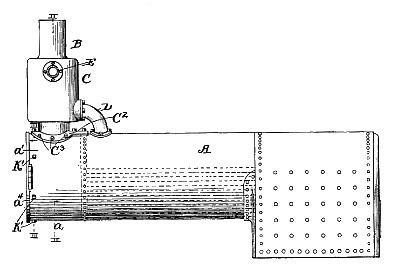

1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for Scheidler Machine Works
|
|
Description: |
| Abstract:
My invention relates to improvements in steam-boilers, and more especially to a boiler for traction-engines and locomotives. One object is to make the steam-dome and the smoke-flue in one and the same casting that has the smoke-flue formed centrally thereof and has a steam chamber formed around the flue and having its opposing walls strong and durable and adequately connected together by internal stays integral with the casting.
Claim:
As an article of manufacture, the dome C having the centrally-located open-ended upright passageway, the chamber formed around the surrounding wall of the aforesaid passage-way, and the webs or stays connecting the said wall with the outer wall of the chamber, which last-mentioned wall is thicker than the first-mentioned wall. |
|
