US Patent: 2,663,978
|
| Lapper for carbide tipped tools
|
|
Patentee:
|
|
| Karl L. Lindmark (exact or similar names) - Loves Park, IL |
|
|
Patent Dates:
|
| Applied: |
Nov. 03, 1952 |
| Granted: |
Dec. 29, 1953 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Jeff Joslin
Vintage Machinery entry for Fenlind Engineering Co.; Rock Mill, Inc.
|
|
Description: |

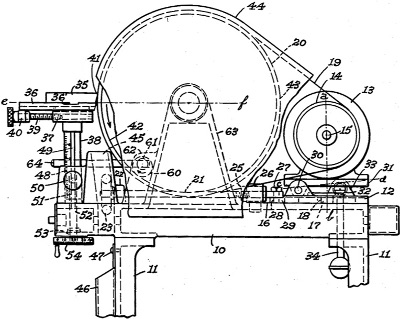

| This lapping machine was also patented as British patent GB-772,246, and was subsequently improved in patent 2,751,723."The principal object is to provide a machine incorporating a wheel of medium-large diameter having a wide flat rim with a smooth, true periphery for an endless belt of abrasive material that is kept evenly tensioned and running true while drives by means of a smaller motor-driven pulley, the wheel and belt thereby cooperating to provide an endless yielding precision lapping surface to lap or polish on the arcuate contour of the wheel to obtain a micro-finish on the tip of a cemented carbide tool bit accurately to a predetermined angle determined by the setting of a horizontal tool support at a predetermined elevation with respect to the working face of the wheel..." |
|
