US Patent: 606,303
|
| Oiling Device
|
|
Patentee:
|
|
| Josiah Scott Scarborough (exact or similar names) - New Philadelphia, OH |
|
|
Patent Dates:
|
| Applied: |
Jul. 07, 1897 |
| Granted: |
Jun. 28, 1898 |
|
Patent Pictures:
[
1 | 2
]
|
|

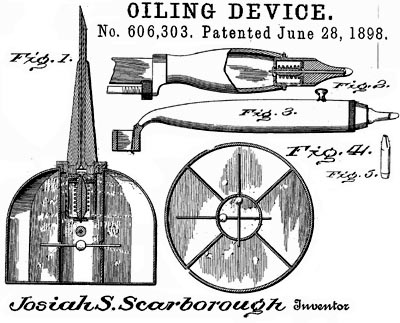

Josiah Scott Scarborough patent June 28, 1898 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |
| The internal reservoir is divided into compartments surrounding a central tube. Passages between the outer compartments and central tube have sliding ball valves, such that the central portion will be fed by a compartment "above" the tube when tool is in a horizonal position. A spring loaded plunger valve has an extension through the delivery spout. Pushing the spout against a surface to be oiled opens the internal valve, and allows oil to flow.
This oiler is described as fitting on the handle of a wrench, with or without the divided compartment provision.
A known example set up as a carriage axle nut wrench (as shown in Fig. 3 of the drawings) is marked only with the patent date. |
|
