US Patent: 695,047
|
| Nut Wrench
|
|
Patentee:
|
|
| William F. Hamilton (exact or similar names) - Ventura, CA |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Jun. 17, 1901 |
| Granted: |
Mar. 11, 1902 |
|
Patent Pictures:
|
|

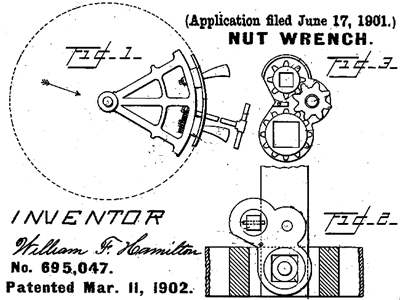

William F. Hamilton patent March 11, 1902 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |
| "T" handle drives a socket through an intermediate gear train, with the gears placed at apices of a triangle. The "dogleg" conformation of the cased gear train allows access to the otherwise inaccessible nuts holding threshing machine cylinder teeth - in particular those teeth in line with the end rims, internal spiders, and binding hoops. The specifications note other patents using gear trains, and how this patent differs.
Compare prior patent no. 350,603. |
|
