US Patent: 767,387
|
| Wheel Rim Finishing Machine
|
|
Patentee:
|
|
| Nicholas D. Chard (exact or similar names) - Cincinnati, Hamilton County, OH |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Apr. 11, 1904 |
| Granted: |
Aug. 16, 1904 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for Lodge & Shipley Machine Tool Co.
|
|
Description: |

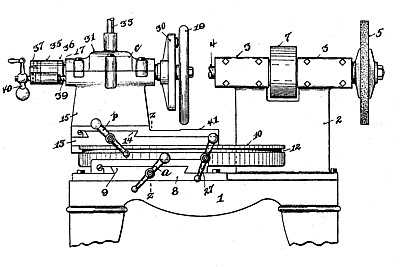

| Claim:
