US Patent: 402,265
|
Wrench
Improved Monkey-Wrench
|
|
Patentee:
|
|
| Vincent J. McDonnell (exact or similar names) - Philadelphia, PA |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Dec. 13, 1888 |
| Granted: |
Apr. 30, 1889 |
|
Patent Pictures:
|
|

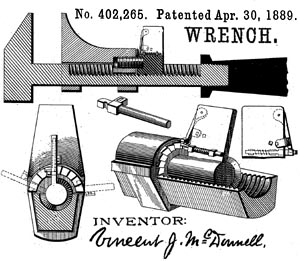

Vincent J. McDonnell patent April 30, 1889 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |
| A lever with a threaded rounded base is attached to the movable jaw. The main shank has a "groove" with threads cut in its rounded bottom. The threaded portion of the lever engages the threads in the groove. At one extremity of its motion, the lever's threads are clear of the groove, allowing the movable jaw to slide freely. The lever's position in relation to the movable jaw is held by a spring-loaded pin engaging rack teeth cut in the base of the movable jaw. The teeth are tapered in one direction, to allow for quick tightening.
Subsequent improvement patents are 415,183, 449,129 and 538,841. |
|
