US Patent: 374,650
|
| Wire Splicer
|
|
Patentee:
|
|
| William Francis Batters (exact or similar names) - Click, TX |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Oct. 11, 1887 |
| Granted: |
Dec. 13, 1887 |
|
Patent Pictures:
|
|

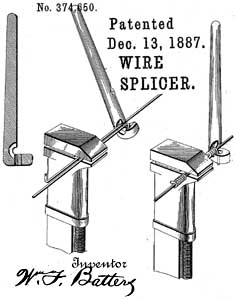

William F. Batters patent December 13, 1887 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |
| The tool is a handle with an offset end. The center of the offset has a hole, and the angle of of the offset and handle has a semicircular groove.
In use, this tool would have to be used with a wrench as shown in the drawing, or some other tool to hold the paired wires together. |
|
