US Patent: 293,984
|
| Adjustable Wrench
|
|
Patentee:
|
|
| Alphonso B. Smith (exact or similar names) - San Francisco, CA |
|
|
Patent Dates:
|
| Applied: |
Apr. 18, 1883 |
| Granted: |
Feb. 19, 1884 |
|
Patent Pictures:
|
|

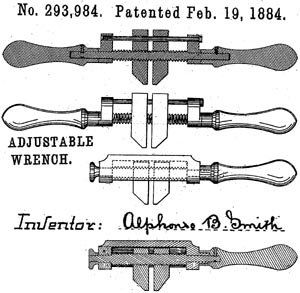

Alphonso B. Smith patent February 19, 1884 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
Alphonso B. Smith (bio.)
|
|
Description: |
| A left- and right-handed threaded shaft moves the jaws toward and from a common center. The patent presents single and double handled versions, with the jaws held either by a slotted back or a guide rod. One possible use for this design is as a tap wrench.
A known example has double handles, with the jaws held by a guide rod. |
|
