US Patent: 3,125,911
|
| Slidable Jaw End Wrench With Spiral Actuator
|
|
Patentee:
|
|
| Guido F. Schlote (exact or similar names) - Dallas, TX |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Oct. 17, 1962 |
| Granted: |
Mar. 24, 1964 |
|
Patent Pictures:
|
|

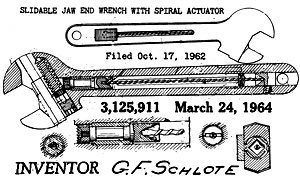

Guido F. Schlote patent March 24, 1964 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |
| The adjusting mechanism is inserted in bores in the solid body of the wrench. The mechanism is held in by screw plugs and set screws. The patent notes the bearings for the rotating portions of the adjusting mechanism. The spiral shaft is flat twisted stock.
The patent cites a number of previous patents as references including: 402,132, 461,617, 1,837,341, 2,753,748, 2,795,987, 2,993,398, and 3,000,246.
The patent is cited in design patent D524,126 (July 4, 2006) and in the specifications for patent no. 3,555,939 (Jan. 19, 1971). |
|
