US Patent: 203,272

Hog-Ringing Implement

Patentee:

Hugh W. Hill (exact or similar names) - Decatur, IL

USPTO Classifications:

30/271, 72/409.02, 72/48

Tool Categories:

pliers : hog ring

agricultural : nose ring tools

Assignees:

None

Manufacturer:

Not known to have been produced

Witnesses:

Chas. F. Chapman

J. S. Dempsey

Levi P. Graham

Patent Dates:
Applied:	Jul. 30, 1877
Granted:	May 07, 1878

Patent Pictures:

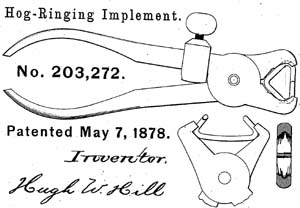

Hugh W. Hill patent May 7, 1878

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Stan Schulz
HILL*S HOG RINGER and RINGS (FLICKR)

Description:

A sliding collar on one handle acts as a setting stop. The jaws are shaped differently than in Hill's previous hog ring pliers patent (no. 130,853, issued Aug. 27, 1872).

An 1891 hardware catalog lists HILL'S IMPROVED with a set screw to differentiate it from the "no set screw" style which is also listed. The "straight back" blank ring shown in the patent appears in three sizes - No. 1 Pig, No. 2 Shoat, No. 3 Hog.
