US Patent: 171,982
|
Pipe-Wrench
Improvement in Pipe Tongs or Wrenches
|
|
Patentee:
|
|
| Joseph Browning (exact or similar names) - Philadelphia, PA |
| USPTO Classifications: |
| 81/96 |
|
|
Patent Dates:
|
| Applied: |
Sep. 27, 1875 |
| Granted: |
Jan. 11, 1876 |
|
Patent Pictures:
[
1 | 2
]
|
|
Joseph Browning Pat. January 11, 1876 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |

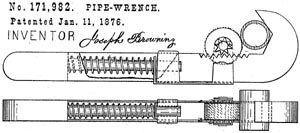

| The patent is for the toothed wheel on a movable carriage forming the movable jaw in conjunction with the rack teeth on the main bar. The patent described a self-adjusting form with a compression spring connecting the jaw carriage to the main bar, and a screw-adjust form with a long adjusting screw extending to the end of the handle.
An 1877 W.C. DUYCKINCK (New York) supply catalog shows the wrench in 4 sizes, identified as "MARSHALL PATENT PIPE TONGS."
Browning received November 30, 1897 patent (no. 594,775) for "V" shaped gripping groves in the face of the gripping roller.
A Dec. 29, 1898 "IRON AGE" listing advertises this wrench as being brought to market by the Bonney Vise and Tool Works; it is the "pull the jaw back against a compression spring to adjust" type. |
|
