US Patent: 1,101,889


	Home\| FAQ	Search:Advanced\|Person\|Company\| Type\|Class	Login


Quick search:	Patent number:	Patent Date:

Wrench

Patentee:

William S. Stone (exact or similar names) - Cecilian, KY

USPTO Classifications:

81/75

Tool Categories:

wrenches : axle nut wrenches : axle nut wrenches that lock nut to wheel hub

Assignees:

None

Manufacturer:

William S. Stone - Cecilian, KY

Witnesses:

Patent Dates:
Applied:	May 24, 1912
Granted:	Jun. 30, 1914

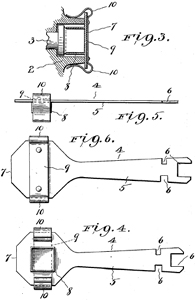

Patent Pictures: [ 1 | 2 ]

William S. Stone Pat. June 30, 1914

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Stan Schulz

Description:

An exterior spring clamps on the outside of the wheel hub; the socket fits the axle nut; and the open end at the end of the handle can span a wheel spoke. This axle nut wrench clamps the axle nut to the wheel so turning the wheel tightens or loosens the axle nut.
