US Patent: 1,001,316

Angle Gage for Squares

Patentee:

Frank Edward Smith (exact or similar names) - Lestershire, NY

USPTO Classifications:

33/427, 33/DIG16

Tool Categories:

layout tools : squares : carpenter squares

Assignees:

None

Manufacturer:

Not known to have been produced

Witnesses:

J. S. Burrows

R. F. Fuller

Patent Dates:
Applied:	Jan. 25, 1910
Granted:	Aug. 22, 1911

Patent Pictures:

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Russ Allen.

Description:

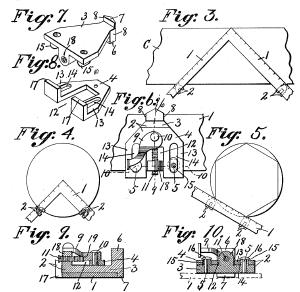

Sliding gage that can be clamped to either side of a square or graduated bar for laying out stair stringers, rafters as well as polygons and determining the center of circles.

Application was renewed on 27 DEC 1910.
