US Patent: 13,617
|
| Screw-Wrench
|
|
Patentee:
|
|
| Joseph Hyde (exact or similar names) - New York, NY |
|
|
Patent Dates:
|
| Granted: |
Oct. 02, 1855 |
|
Patent Pictures:
[
1 | 2
]
|
|
Joseph Hyde patent Oct. 2, 1855 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |

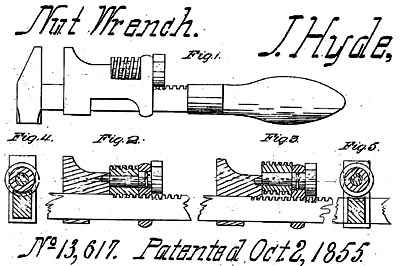

| The face of the wrench bar is threaded to engage threads on a nut in the adjustable jaw. The adjusting nut rides on an oval pin with a second adjusting knob, to throw the adjusting nut into or out of engagement with the teeth on the bar. This enables the wrench to operate with a quick and screw-adjust.
A GRAY BROTHERS (N.Y.) 1857 / 1858 listing shows a HYDE's PATENT GRIPPING WRENCH that incorporates features of this patent and Hyde's March 13, 1855 patent (no. 12,510).
A corroded example retrieved from a Civil War era shipwreck shows the "grain" of the upset wrought iron forming the head. |
|
