US Patent: 60,690
|
| Improvement in Combined Square and Level
|
|
Patentee:
|
|
| G. L. Chamberlain (exact or similar names) - Marietta, OH |
|
|
Patent Dates:
|
| Granted: |
Jan. 01, 1867 |
|
Patent Pictures:
[
1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Ralph Brendler
|
|
Description: |

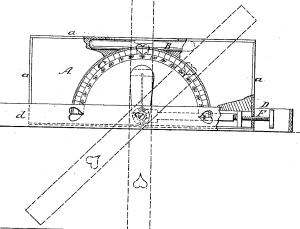

| This is a combination tool that adds a pivoting arm to a standard level, allowing it to be used as a square or bevel. The arm locks from a clever screw-activated mechanism on the side of the level.
Known examples of the production pieces do not use the patented locking mechanism, instead using a more traditional thumbscrew on the arm. They do, however, use the cute and clever heart-shaped cutouts on the arm, where the point of the heart is the indicia. |
|
