US Patent: 579,949
|
| Roll Holding Camera
|
|
Patentee:
|
|
| Frank A. Brownell (exact or similar names) - Rochester, Monroe County, NY |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
May 11, 1895 |
| Granted: |
Apr. 06, 1897 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:

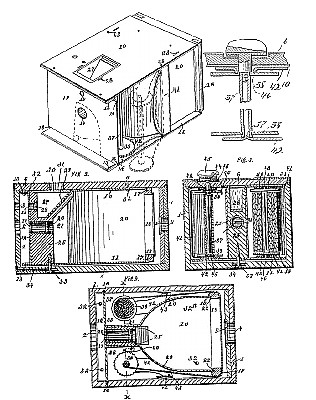

My present invention relates to photographic cameras, and has for its object to provide a simple, cheap, and compact camera particularly adapted for use in connection with rolls or spools of flexible photographic film, and in which the parts are so arranged and constructed that ready access may be had to the interior for reloading and removing spools of exposed film; and said invention consists in certain improvements and combinations of parts.
Claim:
The combination with a camera-frame consisting of top, bottom and front portions, formed of a single piece of metal having the double flanges between the top and bottom io portions and the front and the flanges at time rear, of the partition-plates between the top and bottom portions, having the flanges at the rear, a frame having grooves to receive the flanges on the top and bottom and partition-plates, and an in closing casing for the rear and sides of the frame.
|
|
