US Patent: 3,613,486
|
| Pipe Wrench Adapter.
|
|
Patentee:
|
|
| William C. Chapman (exact or similar names) - Brighton, MI |
|
|
Patent Dates:
|
| Applied: |
Jan. 02, 1970 |
| Granted: |
Oct. 19, 1971 |
|
Patent Pictures:
[
1 | 2 | 3
]
|
|
William C. Chapman patent October 19, 1971 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |

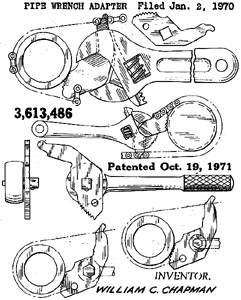

| The patent is for the piece with gripping teeth, and extended lip to engage standard sprocket chain, and shaped to fit into the slotted "way" of a standard adjustable end wrench. The patent includes alternate openings in the body to adapt this piece for use with a ratchet wrench or Allen wrench.
Known examples have some variation of "TIGER" as part of the marking -- TIGER TOOL or TIGER CLAW.
The specifications cite patent nos. 337,627, 3,205,735, and 3,314,317 as relevant prior art.
The third image shows the adapter in conjunction with a CHAPMAN TIGER-LOCK adjustable end wrench based on patent number 3,190,154. |
|
