US Patent: 2,572,652
|
| Multiple Expansion Steam Engine
|
|
Patentee:
|
|
| Herman G. Mueller (exact or similar names) - Erie, Erie County, PA |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Feb. 21, 1947 |
| Granted: |
Oct. 23, 1951 |
|

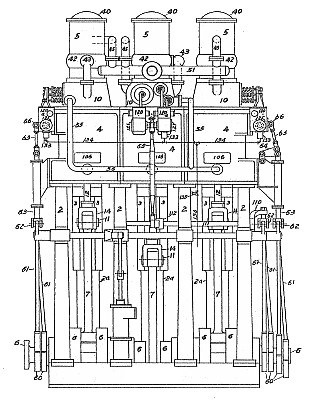

Patent Pictures:
[
1 | 2 | 3 | 4 | 5 | 6 | 7
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for Skinner Engine Co.
|
|
Description: |
| This engine was also patented in Canada, patent #CA-481113.
Abstract:
This invention relates generally to multicylinder vertical compound steam engines using a "Woolf steam cycle," and it relates more particularly to steeple-compound, uniflow, poppet- valve, reversing stationary and marine steam engines, on which much higher steam temperatures can be used with resulting lower steam consumption.
Claim:
In a multicylinder steam engine, in combination, a high-pressure cylinder and a low-pressure cylinder having admission and exhaust ports, valves for controlling the steam events in said cylinders, and an open auxiliary steam line between said high-pressure cylinder and said low-pressure cylinder. |
|
