GB Patent: GB-189,721,772
|
Improvements in and relating to Bolt Belt Fasteners.
|
Patentee:
|
|
Isaac Jackson (exact or similar names) - Glossop, Derby, England |
|
Patent Dates:
|
Applied: |
Sep. 23, 1897 |
Granted: |
Jul. 30, 1898 |
Antedated: |
Sep. 23, 1897 |
Patent Pictures:
|
|

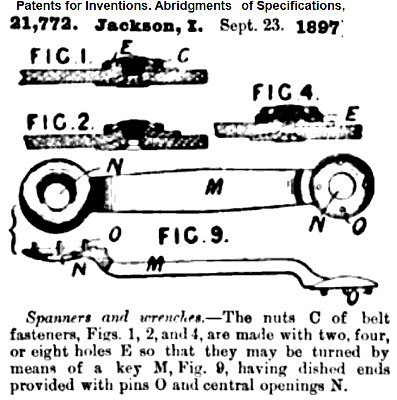

Patent GB189721772 - edited from "Abridgments of Specifications" |
Espacenet patent
Report data errors or omissions to steward
Stan Schulz GB-189721772 in ESPACENET
|
Description: |
The patent describes two part belt fasteners (connectors for joints in endless belts used for power transmission) with curved faces. The two parts screw together, and the faces have holes for pin spanner type "keys" to tighten and loosen the screws. The patent also describes the corresponding "keys" with curved surfaces from which the pins extend. This 1897 patent was subsequently amended to remove references to one optional form for the fasteners. See also Jackson's 1902 patent GB-190206356 [forming curved face bolts], and 1903 patents GB-190306014 and GB-190326698.
Note: British patents (through 1915) were numbered by the year and started at patent #1 at the start of each year in January. The patent # used in DATAMP represents the year of registration and the patent #, with "leading zeros" interposed to make the number total nine digits. This patent is #21772 of the year 1897. |
|
