GB Patent: GB-190,210,061
|
Improvements in Adjustable Spanners or Wrenches
|
Patentees:
|
Charles Francis Edward Swinden (exact or similar names) - London, England |
George Belle Jones (exact or similar names) - Chicago, IL |
|
Patent Dates:
|
Applied: |
May 01, 1902 |
Granted: |
Mar. 12, 1903 |
Patent Pictures:
|
|

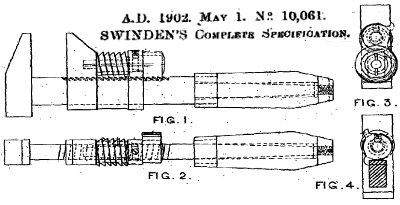

C.F.E. Swinden patent May 1, 1902 |
Espacenet patent
Report data errors or omissions to steward
Stan Schulz GB-190210061 in ESPACENET
|
Description: |
Abstract from ESPACENET: "The movable jaw D carries a worm E, which may be put in or out of gear with the teeth F on the stem B. When the parts are out of gear, the jaw D may be slid rapidly along the stem, and when the parts are in gear a fine adjustment may be given to the jaw D by turning the worm E. The worm turns on a spindle G, which is eccentrically pivoted and carries projections J which serve as stops and as means for turning the spindle."
The specifications note this invention comes from George Belle Jones of Chicago, Illinois.
Ron Geesin's THE ADJUSTABLE SPANNER shows this design produced by Swinden as the Instantaneous Grip Spanner.
Note: Early English patents (pre 1916) were numbered by the year and started at patent #1 at the start of each year in January. The patent # used in DATAMP represents the year of registration and the patent # (with "leading zeros interposed to make the number total nine digits). This patent is #10,061 of the year 1902. |
|
