US Patent: 837,382
|
| Hemmer Guide for Skirts of Ladies and Childens Dresses
|
|
Patentee:
|
|
| Victor Henry Canham (exact or similar names) - Guelpg, Wellington County, ON, Canada |
| USPTO Classifications: |
| 33/9R |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Feb. 15, 1906 |
| Granted: |
Dec. 04, 1906 |
|

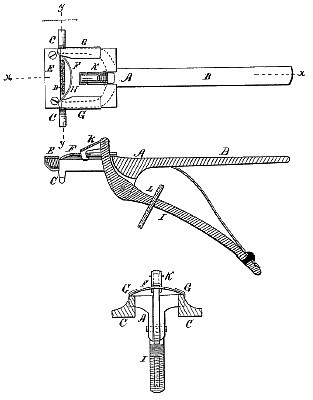

Patent Pictures:
[
1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
MJD Auctions
|
|
Description: |
| Abstract:
The object of this invention is to provide an apparatus for regulating the length of ladies and children's dress-skirts and coats and at the same time providing a form upon which the edge of the skirt can be formed into a level hem at any required height from the floor.
Claim:
The hemmer-guide consisting of a suitably shaped base carrying two vertical posts on which slides a horizontal riser-bar, locked by means of a setscrew and carrying a horizon-tally-curved guide-bar one end of which is free to allow the formed hem to slide off. |
|
