US Patent: 6,615,876
|
| Reinforced Hose And Associated Method Of Manufacture
|
|
Patentees:
|
| Scott L. Badders (exact or similar names) - Liberty, Clay County, MO |
| John R. Aull (exact or similar names) - Excelsior Springs, Clay and Ray Counties, MO |
| Doug M. Brock (exact or similar names) - Excelsior Springs, Clay and Ray Counties, MO |
| Manufacturer: |
|
Gilmour, Inc. - Excelsior Springs, Clay and Ray Counties, MO |
|
|
Patent Dates:
|
| Applied: |
May 10, 2000 |
| Granted: |
Sep. 09, 2003 |
|
Patent Pictures:
[

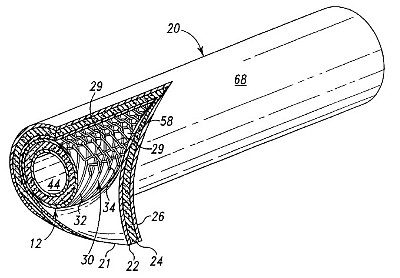

1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
A hose includes a tube assembly surrounded by a textile reinforcement that is surrounded by a cover assembly. The tube assembly includes an inner non-foamed layer that is surrounded by a foamed layer that is surrounded by an outer non-foamed layer. The textile reinforcement surrounds the outer non-foamed layer of the tube assembly and preferably consists of a first spiral threading and a second mesh threading. The cover assembly includes an inner non-foamed layer that is surrounded by a foamed layer that is surrounded by an outer non-foamed layer. The adjacent relationship of the outer non-foamed layer of the tube assembly and the inner non-foamed layer of the cover assembly provide a substantial increase in adhesion between the two assemblies. Further, this configuration reduces the tendency for water seepage between the layer or plies that can cause bubbles and separation. Still further, the present configuration allows the foam layers to be blown with lighter densities for softness and reduced weight while not compromising hose integrity. Even further, the present configuration improves hose strength with a concomitant reduction in the amount of textile reinforcement.
Claim:
A hose comprising: a tube assembly having (i) a first inner non-foamed layer, (ii) a first outer non-foamed layer positioned around said first inner non-foamed layer, and (iii) a first foamed layer interposed between said first inner non-foamed layer and said first outer non-foamed layer; a textile reinforcement positioned over said tube assembly; and a cover assembly positioned over said textile reinforcement, said cover assembly having (i) a second inner non-foamed layer, (ii) a second outer non-foamed layer positioned around said second inner non-foamed layer, and (iii) a second foamed layer interposed between said second inner non-foamed layer and said second outer non-foamed layer.
|
|
