US Patent: 4,369,958
|
Rotating table positioning device with minimum backlash
|
Patentee:
|
|
Robert A. Maynard (exact or similar names) - Holland, NY |
|
Patent Dates:
|
Applied: |
Nov. 17, 1980 |
Granted: |
Jan. 25, 1983 |
USPTO (New site tip) Google Patents
Report data errors or omissions to steward
Jeff Joslin Vintage Machinery entry for Aronson Machine Co.
|
Description: |

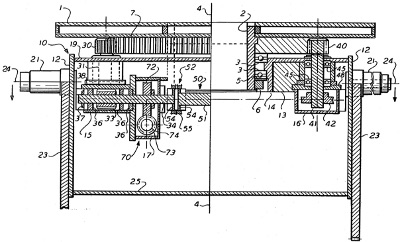

This rotary table is intended primarily for use in arc welding. USPTO records show that this patent was originally assigned to Airco, Inc., and on 1985-09-27 that assignment was transferred to K. N. Aronson, Inc."A motor-driven rotating table positioning device has a bullgear engaged by two pinions each driven by the high-efficiency worm and gear set. These two worm and gear sets are connected by a coupling shaft and an adjustable coupling which allows a desired torsion to be maintained in the coupling shaft thereby eliminating any table backlash caused by the bullgear, pinions and high-efficiency worm and gear sets. For safety in the event of motor failure, the motor is coupled to the coupling shaft by a low-efficiency or self-locking worm and gear set." |
|
