US Patent: D59,417
|
| Socket Wrench
|
|
Patentee:
|
|
| David F. Graham (exact or similar names) - Coudersport, PA |
| USPTO Classifications: |
| D8/29 |
|
|
Patent Dates:
|
| Applied: |
Mar. 22, 1920 |
| Granted: |
Oct. 18, 1921 |
|
Patent Pictures:
|
|

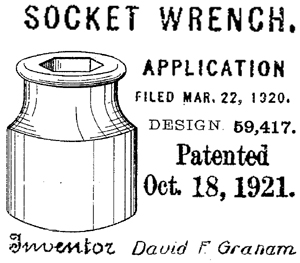

David F. Graham patent October 18, 1921 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |
| The socket has a flared rim around the base with the hex driver opening. The lip forms a catch for the spring clip on the handle. The patent term was 3 1/2 years.
The GRAHAM socket wrench set was advertised in June, 1920 AUTOMOBILE TOPICS. The set is shown with a hexagonal rod handle and spring clip corresponding to patent no. 1,328,428 and sockets matching this design. An edited copy of the ad is appended to the DATAMP entry for 1,328,428. |
|
