US Patent: 1,414,970
Adjustable angle plate
Patentee:
Alexander W. Nelson (exact or similar names) - Newark, Essex County, NJ

USPTO Classifications:
269/60, 269/71, 269/80, 33/555, 409/168, 451/405, 451/414

Tool Categories:
metalworking tools : jigs and fixtures : angle bars and angle plates

Assignees:
Nelson Tool & Machine Co., Inc. - Bloomfield, Essex County, NJ

Manufacturer:
Nelson Tool & Machine Co., Inc. - Bloomfield, NJ

Witnesses:
Frederick C. Fischer
Otto W. Nelson

Patent Dates:
Applied: May 10, 1919
Granted: May 02, 1922

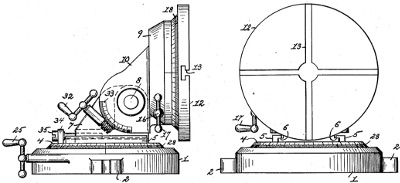

Patent Pictures:
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Joel Havens
"Vintage Machinery" entry for Nelson Tool & Machine Co.
Description:
Claim:

A device of the character described, comprising a support, provided with a recessed and beveled annular seat, a base provided with a correspondingly beveled portion rotatively mounted upon the annular seat of said support, a standard slidably secured to the base, a bracket adjustably and pivotally secured to the standard 'provided with a recessed and beveled annular seat, an angle plate provided with a correspondingly beveled portion rotatively mounted upon thee said bracket and means for changing the angular position of said angle plate.
