US Patent: 2,283,382
Ratchet Mechanism
Patentee:
Siegmund Mandl (exact or similar names) - Milwaukee, WI

USPTO Classifications:
192/43.2

Tool Categories:
wrenches : ratchet wrenches

Assignees:
Blackhawk Mfg. Co. - Milwaukee, WI

Manufacturer:
Not known to have been produced

Witnesses:
none listed

Patent Dates:
Applied: Jan. 18, 1940
Granted: May 19, 1942

Patent Pictures:

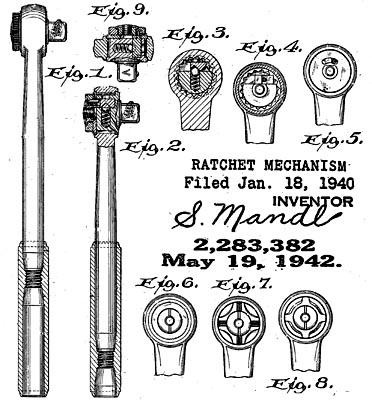

Siegmund Mandl patent May 19, 1942
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Stan Schulz
Description:
The ratchet is of the "single dog" reversible type. Figs. 6, 7 and 8 show different styles of "reversing rings" matching styles used in other BLACKHAWK ratchets. The internal ratchet mechanism also appears in an "in-line" ratchet in patent no. 2,286,917.

The handle end was divided off into a separate patent application and received patent no. 2,282,148.

Morsell, Lieber & Morsell - patent attorneys
